CHAPTER FOUR
NON DETERMINISM AS A PARADIGM FOR UNDERSTANDING THE USER INTERFACE

4.1 Introduction

Although this chapter primarily presents conceptual and pragmatic ideas about non determinism in user-interfaces, there is another, higher level, and more important point to it. This chapter exemplifies the subtle interweaving of formal and informal reasoning, the way formal analysis can lead to new insights which influence the informal.

We start with an examination of problems arising from several formal models of ineractive systems.Chapter 5 [Harrison and Dix 1990] gives a fairly detailed account of one such model, however, here our treatment will be less formal, only considering those features essential for the present discussion. These features lead us to consider non deterministic models in order to express properties of interest. These models are non deterministic in a purely formal sense; the rest of this chapter considers the repercussions non determinism has on our understanding of the user intterface.

Non determinism contradicts the general feeling that computer systems are deterministic, following a fixed set of instructions, so we might wonder whether there is any real meaning to this use of the term non-determinism, or whether it is a useful, but essentially meaningless, formal trick.

Here, we shall demonstrate four things about non-determinism in user interfaces:

• It does exist
• Users deal with it
• We can help them do this
• We can use it

Sections 4.4 and 4.5 deal with the first of these points. The first of these shows that non-determinism is in fact a common experience of users, and we focus on the notion of behavioural non-determinism in order to square this with the normal deterministic model of computation. The next section then catalogues various sources of non-determinism in the user interface.

Further sections show how users, abetted by the designers of systems, can deal with non determinism. The final point of section 4.6 reminds us how non determinism can be useful in the specification of systems, however this non determinism is not intended to be a facet of the actual system, only a tool for development. Section 4.7 goes beyond this giving an example of how non determinism might be deliberately introduced into the user interface to improve performance. Without being prepared - by noting how supposedly deterministic systems behave as if they were non-deterministic - the deliberate introduction of non determinism would seem preposterous! Instead we are able to assess it impartially and see how it may actually reduce apparent non-determinism for the user.

This last section is of a semi-formal nature, but the preceeding discussion will be essentially informal. So that the overall structure of the chapter is:

• Formal models - need for non-determinism
• Informal analysis of non-determinsm
• Semi-formal application of the analysis

To some extent the overall structure of the chapter (formal models; informal analysis; semi-formal application) is the opposite of the normal presentation where an informal problem leads to a formal statement and analysis, but it reflects the true historical development of the work. The formal models of course did arise originally from informal consideration of the systems they describe, but the issue of non-determinsim, and the recognition of it in various guises arose directly from the formal analysis. Having done that however, it didn't remain in the formal sphere, but enabled understanding beyond the aspects formally modelled.

4.2 Unifying formal models using non-determinism

Several different interaction models have been developed at York to understand and express properties of various styles of interaction. These are abstract formal models: abstract in iorder to be generic over a range of similar systems and formal in order to be amenable toi analysis. Here we are going to consider briefly three of these interaction models:

• PIEs [Dix and Runciman 1985] - a very general "black-box" model intended to be applicable to almost all systems.
• a temporal model [Dix 1987] - for considering real time properties of interactive systems.
• view spaces [Dix and Harrison 1985] - for modelling windowed systems.

In any particular system, we may want to apply properties expressed over several of these models and we could simply map them all onto the system independently, however it is clearly sensible to consider how these inter-relate at the abstract level, and if possible relate them all back to the general PIE model. This process will require a non deterministic version of the PIE model.

More details about these models and the principles that can be defined, using them can be found in the papers cited above, and in my thesis [Dix 1987b].

4.2.1 PIE model

The PIE model is a very simple model of single stream input/output interactive systems, The user enters a stream of commands from a set C. These commands can be at various levels, perhaps key-presses or mouse-clicks, or perhaps parsed command lines. The response of the system we call the effect (from a set E). Again this can be interpretted at various levels, perhaps the actual bitmap or character map seen by the user, or perhaps the underlying state of the system. When this latter is the case, there will typically be functions display: E D and result: E R giving the immediate display, and the final result of the system for a particular state, if these are present the model is called a red-PIE. The sequence of commands input (from the set P = C^*) is related to the effect observed by an interpretation function I: P E.

This model is used to express simple properties applicable to nearly all interactive systems. Although it is a simple model, it is surprising how complex the analysis can be! One of the first principles considered was related to predictablity. I have been using the system, I go away for a cup of tea, and upon returning have forgotten where exectly I am in the dialogue. Is there sufficient data available for me to proceed. This has been addressed at various levels of complexity and abstraction, but one of the simplest requirements is that the system be predictable

p,q,r P I( p ) = I( q ) I( pr ) = I( qr )

4.2.2 Problem for temporal systems

The above model, does not tell us how long we have to wait for an effect, only what that effect will be when it comes, that is it is a steady state model. It does not allow us to describe real time phenomena, such as the buffereing (or lack of buffering) of user input, or display strategies such as intermittant update (when some intermediate displays are skipped when typing fast) or partial update (when part of the screen is kept up to date, but the rest is allowed to lag behind the typing).

We can augment the model to allow us to describe real time phenomena by including in the possible inputs at any time the possibility of no input (represented by τ - a tick). Thus resulting inputs set is thus C_τ = C { τ }. The sequence of inputs we will call the history H = C_τ^*. The effect is as before, and the history and effect are related by an interpretation function I_τ : H E. Formally, this is identical to the PIE, but the connotations are different: P being sequences of actual user commands, H being a time series.

The user will be unaware of detailed timings (with a clock operating at MHz!), and it is only some abstraction of this temporal behaviour which is apparent. Clearly from any sequence from C_τ we can abstract a sequence from C by simply ignoring all the τ s. This is the user's view of the input (ie. what was entered but not exactly when). It is not clear what effect to associate with a particular input sequence but for the moment let's use the steady state effect. This is the effect that would result if all typing stopped, and we waited for the system to become quiescent or steady.

I_steady( h ) = I_τ ( h τ τ τ .. )

Having removed timing from the temporal system the result is likely to be non-deterministic. For instance take the bufferless typewriter which requires a single time interval after each character in order to reset itself and ignores any characters being entered too fast. In this case C = Ch, the set of characters, and E = Ch^* sequences of characters.

The interpretation function is defined as follows, &epsilon being the empty sequence:

I_τ ( ε ) = ε
I_τ ( c ) = c
I_τ ( p τ ) = I_τ ( p )
I_τ ( p τ c ) = I_τ ( p ) c
I_τ ( p c₁ c₂ ) = I_τ ( p c₁ )

I_τ ( a τ b τ c ) = abc
I_τ ( a b τ c ) = ac
I_τ ( a b c ) = a

Clearly we need a non-deterministic version of the PIE model to model such behaviour.

4.2.3 Problem for windowed systems

A similar problem arises when considering the representation of windows. We can create a model similar to the PIE model to represent windowed systems. We associate with each window a label or handle (from a set Λ). The possible states of the system ar from a set S, and we can recover from this a combined result (result: S R), and for each window its display (display: S Λ D). Similarly each command is addressed to a particular window, and we get a state updating operation doit: S C Λ S. In fact the model needs to be a little more complex to deal with the way windows are created and destroyed, but this suffices for the present discussion.

The whole system may be regarded as a PIE with a command set of C Λ. More often we would be interested in regarding each window as an interactive system in its own right.

If we "freeze" all other windows we can give the functionality of a window λ in the state s as the result and display interpretations I_r and I_d:

I_r = result I_λ
I_d( p ) = display( I_λ( p ) , λ )

I_λ ( ε ) = s
I_λ ( pc ) = doit( I_λ ( p ) , c, λ )

This definition is not very useful: it's not very interesting knowing the functionality of a window system when you only use one window! What we really want to know is the functionality of each window when other windows are being used also. To do this we would consider the possible effect of commands p to a window amidst all possible interleavings from other windows. Sometimes all commands are result and display independent in all contexts, that is the overall result, and the displays in the windows do not depend on the order of interleaving. In this case, we would obtain the same interpretation functions as above. In the general case however we would again obtain non-deterministic functionality.

Meta-point: The various formal models have been developed out of our informal understanding of interactive systems. They are all deterministic but in each case we have found a purely deterministic model insufficient. We are now going to consider non deterministic models.

4.3 Non deterministic PIEs

We will now consider non deterministic generalisations of the PIE model. There are various ways of modelling non-determinism, but one of the simplest is to substitute for some value a set of possible values. However, we have to be careful to choose the right representation of our model, and the right values to substitute. The simplest option is to assign to each input set of possible effects. That is we modify the signature if the interpretation to I_ND : P E, where E is the collection of sets of effects. Unfortunately this does not distinguish some systems that are clearly distinct. Consider I_ND defined as follows:

p P I_ND ( p ) = { 0, 1 }

Does this describe a system that starts off with a value of 0 or 1 and retains this value no matter what the user enters, does it represent a system that makes an independent choice after each command, or is it something in between. On the basis of the information given, we cannot decide. We therefore need to consider the trace of all effects generated by a command.

For any deterministic PIE we can always define a new interpretation I^* : P E^* by:-

I^* ( ε ) = [ ε]
I^* ( p c ) = I^* ( p ) :: [ I( c ) ]

That is we define an interpretation giving the entire history of effects for each command history. This is the appropriate function to generalise for non-determinism yielding an interpretation I_ND^* : P E^*. We could then distinguish the single random constant system with interpretation:

p P I_ND^* ( p ) = { zeroes , ones }
where
   zeroes is a sequence of zeroes of length length(p)+1
   and ones is a sequence of ones of the same length

p P I_ND^* ( p ) = { 0, 1 }ⁿ⁺¹
where n = length(p)

We can see that necessary conditions for a valid interpretation I_ND^* are:

Effect history is right length for number of inputs
e^* I_ND^* ( p ): length( e^* ) = length( p ) + 1

History cannot change
q p P, e_p^* I_ND^* ( p )  e_q^* I_ND^* (q): e_q^* e_p^*
where
is the initial subsequence relation: q p r P: p=qr

From now on we will call a triple < P, I_ND^* , E > satisfying these conditions a non deterministic PIE abbreviated ND-PIE.

We can say that a ND-PIE is deterministic if for all p there is at most one effect given by I_ND^* ( p ). That is

p P   || I_ND^*(p) || 1

If we don't want our ND-PIEs to have input languages, then we have to put more restrictions on I_ND^*. It is insufficient in the general case to simple ask for I_ND^* to always be non-empty. Consider I_ND^* where:

I_ND^* ( "ab" ) = { "000", "111" }
I_ND^* ( "abc" ) = { "0000" }

p q P , e_p I_ND^* ( p ) e_q I_ND^* ( q ) st e_p e_q
where is again the initial subsequence relation.

4.3.1 Use for temporal systems

We can now use the ND-PIE to represent the non-deterministic functionality we required in section 4.2.1. That is:

I_ND^* ( p ) = { I_steady^* ( h ) | ξ ( h ) = p }

ξ ( ε ) = ε
ξ ( h τ ) = ξ ( h )
ξ ( h c ) = ξ ( h ) c      c τ

With this definition the example of the typewriter which misses characters typed too quickly gives us:

I_ND^* ( abc ) = { [ε,a,a,a], [ε,a,a,ac], [ε,a,ab,ab], [ε,a,ab,abc] }

Not only can we now define this functionality, but it gives us a new way to look at the system. A perfectly buffered system with total update (ie. no intermediate displays skipped) is precisely a system where I_ND is deterministic.

4.3.2 Use for windowed systems

We consider using a window (with handle λ) whilest ignoring possible interleaved commands to second window (λ'). This yields a projection from the handle space onto a ND-PIE:

I_ND^* ( ε ) = _{q P} { [ doit^* (e, q, λ' ) ] }
I_ND^* ( pc ) = _{e^* IND^* (p), q P} { e^* :: [ doit^* (doit(e^* ,c, λ ), q, λ' ) ] }

result I_ND^*

4.3.3 Non-deterministic properties of PIEs

We have seen that properties over temporal models and handle spaces can be given statements as determinacy properties of ND-PIEs. Are there any interesting ND-PIEs that can be abstracted from simple PIEs?

We considered the simple predictability property that a PIE is monotone if:

p,q,r P I( p ) = I( q ) I( pr ) = I( qr )

I_ND^* ( s ) { I^* ( p s ) } _{p P}

s P , e₁^* , e₂^* I_ND^* ( s )
   first ( e₁^* ) = first ( e₂^* ) e₁^* = e₂^*

One other ND-PIE suggested by the definition of I_ND^* above is if we substituted arbitrary PIEs for the collection I_p. For example, given two interpretations I and I' over the same domains P and E, we could define the non-deterministic interpretation:

I_ND^* ( p ) { I ( p ), I' ( p ) }

A specific case of this is where the interpretations are PIEs representing the "same" system with different start data. If we consider the red-PIE, we will often have the case where there is a "bundle" (tray!) of PIEs, each indexed by an element of the result, {I_r}_{r R}. Where each PIE starts with the appropriate result, and is related to the others:

r R: result ( I_r ( ε ) ) = r
r, r' R: p_r^r' P: p P: I_r' ( p ) = I_r ( p_r^r' p )

The ND-PIE generated from these interpretations:

I_ND^* ( s ) { I_r^* ( s ) }_{r R}

4.3.4 Summary - formal models and non-determinacy

We have seen how a non-deterministic model has been useful in unifying the description of various properties in diverse models.

The examples above share one common feature: in each case, the deterministic model is viewed via an abstraction which corresponds to losing some part of the available information. This leads to non deterministic behaviour. In each case the non deterministic model used to capture this behaviour was the ND-PIE, however this is largely because the various models were derivatives and extensions of the basic PIE model. Different flavours of model could be dealt with similarly using different non-deterministic models and perhaps using different methods of expressing the non-determinism.

When viewed in the light of the previous discussion, properties such as predictability and non-interference of windows become efforts to control non determinism, Either they assert that in certian circumstances the effect is deterministic, or give procedures to resolve it.

Meta-point: Having made the formal transition from deterministic models to non detrministic ones, we are now going to shift back to the informal domain. What is the meaning here of the formal analysis?

4.4 Can computer systems be non-deterministic?

In the last section, we found that formal models of non-determinism are useful to describe certain abstract properties of interactive systems, however we were left wondering whether this formal construction held any meaning for the user. We accept that the internal workings of some systems will be non-deterministic, especially where concurrent processes are used, and even that some specialist applications like simulations and certain numerical methods will involve random number generation, but surely most real systems have a deterministic external interface.

4.4.1 The tension for the user

Do users perceive computers as deterministic? In fact the opposite is the case, most users expect a degree of randomness from the systems they use. Time and again they will shrug their shoulders in bewilderment, "Oh well it didn't work this time, I'll try the same thing again, it may work now." The apparently random behaviour of such systems conflicts with the alternative model of the computer as a deterministic machine relentlessly persuing its logical course. Some users are able to cope with this. Expert users may treat this as a challenge, puzzling over the behaviour and experimenting until a logical reason is found, pragmatists will accept the occasional strangeness circumventing it, and more awestruck users will regard it as part of the magic and mystery of modern technology. Others may have a more negative reaction. The self-confident may react "this is silly" and loose all confidence in the computer, the self-depreciating may respond "I'm silly" attributing their problems to their own lack of understanding, and possibly retiring from further use. Phrased in these graphic terms the problem seems extreme and demands investigation, but how can it be that thoroughly deterministic programs give rise to this apparent randomness.

4.4.2 Levels of non-determinism

Very few systems are really random, even random number generators are usually based on deterministic algorithms, ERNIE being a possible exception. Programs that rely on external events could be classified as non-deterministic, for instance the time when a printer signals that it has emptied its buffer, but even then the printer itself will probably behave deterministically. In fact what is usually termed non-determinsim reflects the things that the programmer either doesn't know or doesn't want to know. In other words, it is programmer centred.

We could classify non-determinsim into several levels, depending on what they appear non-deterministic to.

• mechanistic world - the atomic events measured by ERNIE and the actions of people would certainly be regarded as non-deterministic, and are incapable of prediction even when considering the whole of the computer systems together. Even here, whether these events are "really" non-deterministic can be argued, however this is in the realms of meta-physics.
• computer - other events, like the printer signals are deterministic when we take the entire mechanism computer+printer together, but are not so from the point of view of the computer alone (unless it has a very sophisticated model of the printer, in which case it needn't bother with handshaking at all!)
• programmer - the scheduling of programs within a multi-programming system is deterministic from the computers point of view which is applying some scheduling algorithm (round robin, priority based ...). From the programmer's point of view however, this is non-deterministic and real time may jump suddenly between adjacent program steps. Similarly file systems may change apparently non-deterministically as other programs operate.
• user - even totally deterministic calculations such as "is 579217¹¹-1 prime?" are non-deterministic from the user's point of view [Thimbleby 1986], and are effectively the same as if the computer had tossed a coin to find the answer. Many systems do not use such obviously obscure formulae but manage to produce interfaces that are equally bizzare.

The theme that comes out of the above is that non-determinism is relative, relative to knowledge and to reasoning abilities.

4.4.3 Behavioural non-determinism

What should a user centred view of non-determinism be? If we imagine two systems, they each have two possible prompts, each day they choose a different prompt for the day. One system bases its choice on whether the number of days since 1900 is prime or not, the other on the decay of a slightly radioactive substance. From the programmers point of view (and the computers), we would say that the former is deterministic and the latter not. From the user's point of view the two systems display equally non-deterministic behaviour.

That is, as the user sits at the bottom of the hierarchy of knowledge, all the forms of non determinsim are equally random, and should be treated equivalently. That is we are going to take a behavioural view of non-determinism. This recognises that some system may be "really" deterministic and others may be "really" non-deterministic according to some definition, but if they behave the same, we will regard them as equally non-deterministic. Not only does this mean that we regard some "really" deterministic systems as deterministic, but also the other way round. For instance, if we had a music system with some random "noise" that lead to errors of 1 part per million in the frequency of notes, we would regard the system as being deterministic as the difference in behaviour would be undetectable.

One could demand tighter views of non-determinism, but for the purposes of this chapter we will adopt the behavioural one. Again, one could use a weaker word to represent behavioural non-determinism however the use of such a charged word concentrates the mind wonderfully.

Meta-point: At this point we have made an important informal step, obtaining new understanding of non determinism in this context.

4.5 Sources of non-determinism

In the last section we decided that, taking a behavioural view of non-determinism, it did make sense to describe interface behaviour in these terms. In doing so, we introduced some examples to argue the point. In this section we will catalogue informally some of the sources of non-determinism in the user interface, giving more examples on the way. We will study these sources of non-determinism in six sub-sections under several headings:

• timing
• sharing
• data uncertainty
• procedural uncertainty
• memory limitations
• conceptual capture

The first two of these cover the informal equivalents of the two formal problems that started this chapter in sections 4.2.2 and 4.2.3. The second two consider problems that appear even in the steady state functionality of single windowed systems, and cover lack of knowledge about what you are dealing with and how you should do it. These correspond to some of the ND-PIEs we considered in section 4.3.3. The last two are to do with the more complex ways that human limitations can give rise to apparent non determinism. These two could be thought of as "the user's fault", but the system designer cannot wriggle out of it so easily, good system design should take into account the inevitable human limitations of its users.

I'm sure this list is not complete however it gives a broad spectrum of different types of non-determinism to which the reader can add.

4.5.1 Non-determinism due to timing

A variety of problems that users experience can be viewed as manifestations of non determinism. When a user types quickly, intermittent and partial update strategies produce different output than if s/he had typed more slowly. If the user is unaware of this exact timing, then the system's behaviour is apparently non-deterministic. This non-determinism is usually deemed acceptable since the final display does not depend on the exact timing, and further, spells of fast typing may be regarded as single actions anyway. Intermittent update could be said to be less non-deterministic than partial update since at least all its intermediate displays would have arisen with slow typing. On the other hand a portion of the screen in partial update is always exactly as it would be if the machine were "infinitely fast", and this portion is therefore totally deterministic.

Similarly the problems associated with slow machines and buffering can be thought of as non-determinism. A machine that doesn't buffer and loses characters typed too quickly could be regarded as non-deterministic on this score. This is exactly the non determinism captured by the formal model at the beginning of this chapter. However a system with buffering can lead to a non-deterministic feedback loop between user and computer, leading for instance to cursor tracking (where the user continually overshoots with the cursor)..

Scheduling of multiple processes leads to non determinism. If for some reason a system makes explicit or implicit use of real time, then, when running on a time share computer, the run times of its components and hence possibly its functionality, will be non-deterministic. More often than not this dependency on real time will be in the assumptions made about the relative speeds of certain components, or in the assumption that two statements following one another will be executed immediately, one after the other. The most innocuous case of this is when several concurrent processes print messages to the terminal in random order.

4.5.2 Non-determinism due to sharing

Again the problem of sharing can be regarded as one of non-determinism, reflecting exactly the formal treatment. For instance as I transact with one process which is my focus of interest, other processes may print error messages on the screen. Because I am preoccupied with the focal process, I may have forgotten that the others were running and thus be temporarily confused. In this case I would not remain confused for long, as I would remember what other processes were running (or ask the system), and infer their behaviour. Thus the non-determinism could be resolved, but not soon enough to stop me acting (potentially disastrously) on a changing system.

This situation is in the middle of three levels of sharing. Each of these types of sharing can lead to non-determinism.

Single actor - multiple persona. The user is simultaneously involved (perhaps via windows) with several dialogues, which may share data. When switching from one dialogue to another, he may forget that actions in one dialogue may have repercussions in the other, thus causing apparent randomness. Literally the right hand may not know what the left is doing.

Single controller - several actors. The user sets off several concurrent processes that affect data common to each other and to the user's current view. This is the original case given above, and differs from the single actor case in that changes may actually occur as the user is actively involved in a dialogue, rather than during interruptions to the dialogue. Because of this it is apparently more non-deterministic since the system is changing as one tries to manipulate it.

Several independent actors. This is the case of the multi-user system where not only are several things happening at once, but they are not under your control. This is the most random of all, since the machine processes are at least in principle predictable, but from your point of view the other users are fundamentally non-deterministic processes.

4.5.3 Data uncertainty

A user has a program on a system which was written a long time ago, the exact contents of it is now forgotten. He wants to make changes to this program and invokes his favourite editor by entering the command "edit prog".

This is an example of data uncertainty; the user does not know the exact value of the data on which he is going to operate, and a major goal of the interactive session is to reduce the uncertainty, perhaps by scrolling through the file to examine it. This corresponds to the ND-PIE generated from the bundle of PIEs in section 4.3.3.

Data uncertainty is of course common. The example given is typical of uses over many different types of task. However it is not so much a problem in itself as it is expected: we do not expect to know all the data in a computer system by heart. The importance is in the user's ability to discover the information, that is in the resolution of the non-determinism, a point we shall return to in the next section.

4.5.4 Procedural uncertainty

Consider the following two situations

• A user is within a mail utility and has just read an item of mail which is only 10 lines long and is still completely visible on the screen. She wants her reply to include a few selected lines from the message and does this by using the mail's "e" command in order to edit the text of the message. There are several editors on the system. "I wonder which it will use", she thinks.
• The user who is editing the program (from the example in the previous sub-section) decides that the variable names "a,b,c" are not very evocative of their meaning and decides to change them to day-total, week-total and year-total respectively. He then realizes he has forgotten the method of achieving a global search/replace.

In the first situation, the exact nature of the data is known and it is procedural uncertainty from which the user suffers. She will look for clues using the knowledge she has of editors on the system. The editor fills the entire screen so it can't be a line editor like "ed", she surmises. Neither can it be mouse based, like "spy", for it doesn't have menus all over the place. It could be either of the screen editors "ded" or "vi". Tentatively she types in a few characters to see if they're inserted in the text. The editor beeps at her a few times, then deletes half the text ... now she knows it's definitely "vi".

This form of procedural uncertainty is captured by the ND-PIE which chose between a set of interpretation functions. It is interesting that the two situations which appear quite different informally, have such a similar informal definition.

The second case is another example of procedural uncertainty of a less extreme and more common form!

4.5.5 Memory limitations

As previously stated, one of the causes of non-determinism is lack of knowledge. This is exacerbated by the fact that people forget. Thus as the user attempts to amass information in order to resolve the non-determinism, her efforts are hampered by her limited memory. A designer must consciously produce features which take account of this. These could include general features, such as an online memo-pad and diary, or more system-specific ones. Further the user is likely to interpolate the gaps and be unaware of which information is known and which is inferred. This process is distinct from forgetting and we shall call it degradation of information The designer may need be aware of where such degradation is likely and actually force this information to the user's attention.

4.5.6 Conceptual capture

We are all familiar with the idea of capture, where for example one walks home without noticing when one intended to go to the railway station in the opposite direction. This occurs in computer systems where commonly used sequences of keys can take over when one intends to use another similar sequence. A similar process can also occur at the conceptual level. For example in a display editor where long lines are displayed over several screen lines, the cursor up key might mean move up one screen line or one logical line. As most logical lines will fit on the one screen line the difference may not be noticed. Later when a long line is encountered the action of the system may appear random to a user who has inferred the wrong principle.

4.5.7 Discussion

Of the six headings which we've considered, the first four can be be given formal expression, to some degree or other, using the models developed in this and previous chapters. The last two would require a more sophisticated model of human cognition, with its attendant problems of robustness. There is an obvious parallel between data uncertainty and degradation of information and between procedural uncertainty and conceptual capture. However the second of each pair is far more dangerous. The major problem with both these situations when compared to procedural and data uncertainty is that the user may not be aware of the gaps in her knowledge. The situation where a user doesn't know something and knows she doesn't know it is still non-deterministic, but the situation where the user thinks she knows what the system is going to do and then it does something completely different is downright random. We could say that failure in knowledge is far less critical than failure in meta-knowledge.

Meta-point: Some of the sources of non determinism we have discussed were the direct translation of properties derived form pure formal analysis. Some were not apparent in the formal analysis (perhaps unformalisable) but only appeared when we examined the corresponding informal concepts. Thus, the two strands together have led to an understanding of the situation that wiuld have been impossible to achieve in isolation.

4.6 Dealing with non-determinism

We have seen that non-determinism is a real problem in the user interface, and that it has many causes. How can we deal with the problems of non determinism. We will consider four options in turn:

• avoid it
• resolve it
• control it
• use it

4.6.1 Avoid it

The most obvious way of dealing with non-determinism is to make sure it never arises. This can be done by designing a system with this in mind, or by adding functionality afterwards. We have already seen examples of this:

• Timing - we have said that timing leads to non-determinism. However the information suggested in [Dix 1987] to tell the user when the system is in steady state, and when commands will be ignored will reduce or remove this non determinism.
• Sharing - using the definitions of independence between windows in [Dix and Harrison 1986] we could demand that systems have sharing properties that avoid non-determinism. Alternatively, we can use one of the response suggested there to make the sharing apparent, and hence reduce the non determinism when interference occurs.

In both these solutions, we add information to the interface in order to avoid non-determinism. This is of course a general technique restricted only by the display capacity. For instance, if procedural uncertainty is the fault of hidden modes, then we can make the modes visible via a status line.

We can attempt to avoid conceptual capture by making sure the models we use are either exact matches of the user's model or else where they match and where they don't is made obvious. This is of course very difficult advice to follow as it is difficult to predict what model the user will infer for the system. However systems that propose a model (such as the desktop) but fail if the user follows it too far are obvious candidates for improvement. Another situation it would warn us to avoid is where two sub-subsystems have apparently similar semantic behaviour, but later diverge.

In most systems of any complexity it would be unreasonable to expect complete removal of non-determinism, however these techniques can reduce the non-determinism or remove some aspect of it.

4.6.2 Resolve it

Assuming the user is in a situation of non-determinism he can try to resolve that non-determinism, attempting by observation or experiment to reach a deterministic situation.

Data uncertainty is an obvious candidate for this, and the concept of strategies introduced in [Dix and Runciman 1985] can be thought of as an attempt to resolve the non-determinism. When applied to result predictability it is precisely the resolution of data uncertainty. The use of the strategy for full predictability can be seen as the resolution of both data uncertainty about the result and about internals such as cut/paste buffers, but also the resolution of things such as mode ambiguity.

The designer can help the user in the resolution of data ambiguity by reducing the conceptual and memory costs of strategies. This is aided by the fact that the user will only want to discover some part of the information. Typical techniques include:

• improved navigation aids - By easing the location of information the designer reduces the effort required of the user and makes it more likely that she will be able to remember sufficient information for the task at hand. Further the job of refreshing memory can be significantly reduced. Mechanisms for this include, depending on the application, search commands in text editors, dependency trees in programming environments, cross referencing and indices.
• place holders - Because of degradation the user will need continual refreshing of information. Uncommitted navigation aids can be augmented by the ability to lay marks at important positions to refer back to, comparable to bookmarks.
• multiple windows - In a similar vein, a system may allow several simultaneous views, thus making dispersed information simultaneously available. Due to the limited size of displays all the views will not be present at one moment, and thus we may regard windows as a form of sophisticated place holder.
• folding mechanisms - If the data is structured in a relevant manner, folding mechanisms can significantly aid navigation. Further, if the user has sufficient control over what is and is not folded then unwanted information can be folded away and only the relevant information made visible. Effective folding can thus satisfy some of the requirements for the place holders. It should be noted however that in order to achieve these aims, either the user will require control of the structure of the folding, or the fixed structure must be very well chosen (arguably no fixed scheme would satisfy all needs).

Procedural uncertainty is more difficult to resolve. Help systems can be thought of as a way of resolving procedural uncertainty, however they do of course have to make major assumptions about how much the user knows already. The one sort of procedural uncertainty that the help system definitely cannot resolve, is the method for invoking help. Underlining the need to use consistent and obvious rules for this (permanent icon, dedicated labelled key or the use of "h" or "?".)

4.6.3 Control it

Rather than try to remove non-determinism completely, we can try to control it so that the non-determinism experienced is acceptable in some way. This can obtain at the local or the global level. That is we can ask for complete determinism over a part of the system, or merely that some rules always apply for the system as a whole. We consider the local level first.

It is said that you ought to be able to use a system with your eyes shut. Extending this analogy a bit, we could observe that blind people are able to navigate a familiar room quickly and confidently whereas they would use a totally different strategy for navigating a busy street. Similarly, when using a computer conferencing facility one might be able to touch type because the layout of the keys is fixed, and attention is fixed on the screen where unexpected changes will occur. Thus in computer systems, as in real life we need a solid base of determinacy in order to be able to concentrate on those areas where non-determinacy will occur. We call this requirement deterministic ground. Record and file locking facilities are an example of how we might for a period enforce determinacy on a shared domain. Similarly protection mechanisms offer a more permanent way of ensuring some level of determinacy. However if we look at the three levels of sharing mentioned in section 4.5.2, we see that only the multi-actor case is helped by having private files. So if I have several windows, or have some background jobs running, they are all the same user, and hence the file system protection would fail to protect me from myself. As an example of this breakdown of security, consider the semantics of the line printer spooler. In some systems, the print command does not make a copy of the file to be printed in a system spool area, but merely makes a note of the request and the file to be printed. The user, however, after issuing the command may reach closure on that operation and then later go on to modify or even delete the file to be printed. Perhaps one could extend protection mechanisms to include files private to tasks and windows?

At the global level the effects of sharing are controlled by the accepted procedures that are used for updating them. Some of these enshrined in the software, and some in organisational and social conventions. For instance, today my bank's teller machine might read £300, however tomorrow it may read only £20. If I hadn't kept a close tally on my spending, I might not have expected the change and I would regard the change as essentially non-deterministic; however I would have enough faith in the banking system to believe the change due to some of my cheques clearing. If this belief were not widely held the non-determinacy of bank balances would become unacceptable and the banking system would collapse. Similarly early in a day a travel agent may notice 5 seats free on a particular flight, later in the day, on trying to book one for a customer, the request might be refused. The conclusion drawn is that some one else has booked the seats in the meantime. Thus we rely on the semantics of others transactions to make the apparent randomness of our view of data acceptable. If the changes we observe in the data are not consistent with our understood semantics we will loose confidence in the data.

I would argue therefore that in order to understand the problems of sharing from a user oriented view, we should concentrate on defining the semantically acceptable non-determinism of a system. That is we are prepared to accept limited non-determinism We can apply this to other fields. For instance, if we look at buffering strategies. A perfectly buffered system may well be non-deterministic because the screen does not reflect the current state of affairs, however we might regard this as acceptable. In contrast a word processor which ignored all typeahead would be regarded as exhibiting unacceptable non-determinism. The predicate describing perfect buffering is a limit to the non-determinism sufficient to make it acceptable. Similarly, we may not be too worried about the exact strategy a text editor uses when rearranging the display when the cursor hits the screen boundaries. It would be unacceptable if the cursor movement caused part of the document to be altered. (I have used a text editor which did exactly this!) Again the limitation that the cursor movement does not alter the document is sufficient (with others in this case) to make the non-determinism acceptable.

4.6.4 Use it

We have just argued, that to a large extent controlled non-determinism can be acceptable non-determinism. Every user manual uses this fact, as it defines only the external behaviour of the system. So, for instance, different versions of a word processor could use different algorithms, be written in different programming languages and even run on different hardware (in the same box!) Similarly, formal specifications define only the interface behaviour leaving the internals undetermined. Thus all specification is a use of non-determinism. It is usually assumed that the systems described by formal specifications will be deterministic. It is just which particular consistent system chosen that is non deterministic. One could certainly have non deterministic systems which satisfy a given loose specification, but this is not usually done. There is a paradox here, in order to make accurate statements about a system (and hence reduce non determinism regarding its behaviour) specifications are used which are non determinstic.

Extra material not in the printed chapter Stretching our imagination a little further, we could say that when we see a statement "y := x * x" in a program the value assigned to "y" is non-deterministic because, regarding that statement in isolation, the exact value of "x" is unknown and only the relationship between "x" and "y" is known. This is particularly relevant when "x" is a global variable and hence may have been changed non-locally and hence its exact value may be difficult to determine. Similarly in the function: real square( x ) real x; { return x*x ; } We could say that it uses limited non-determinism to specify the function. The value of the parameter is unknown and only the relationship between parameter and result is determined. Comparing the two examples, we could say that the move from imperative to pure functional programming languages is a trade between non-determinism induced by sharing and parameter value non-determinism! The situation gets even more interesting if the procedure were something like is_prime?, taking a number and telling whether or not it is prime. In this case, the parameter value would be non-deterministic from the point of view of the procedure and the result from the point of view of the caller. Both sorts of non-determinism are necessary for the system to be useful. This parallels within the computer, the duality of non-determinism at the interface.

There is also a strange the duality of non-determinism within the interface. The computer system must, if it is to be useful, be non deterministic. A completely deterministic system would never tell the user anything that the user didn't know already. Not very useful! On the other hand, from the computer's point of view, the user is non deterministic, but if the user were not so, the system would always produce the same result. There is conflict between the two partners' search for determinism, and the programmer usually has the upper hand: forcing the user to answer in specified ways and in specified orders. From the programmer's point of view this could be thought of as producing a more deterministic response from the user. From the user's point of view this is at best restrictive, and possibly may seem non-deterministic because the programmer's arbitrary decisions may have little relevance at the interface. Thimbleby calls this excessive control by the programmer over-determination, [Thimbleby 1980] and elewhere I have proposed a technique for returning control of the dialogue sequence back to the user. Not surprisingly this technique involves programs with non-deterministic semantics and which regard the user as a non-deterministic entity.

We could distinguish two aspects of interface non-determinism based on the previous discussion. First are those that are part of the application, necessary to make the application useful. Second are those in the interface, resulting from arbitrary decisions and complexity, which are not wanted. On the other hand, we could use this to make the distinction between application and interface, discussed by Cockton [Chapter 8 of this book] by saying that the application is what we want to be non-deterministic and the interface is what we want to be deterministic.

4.6.5 Summary - informal analysis

We have seen how the user helped by the designer can avoid, resolve and control the non-determinism of interactive systems. We have also seen that non-determinism can be used in formal specification. Earlier we asked whether non-determinism existed at the user interface or whether it was just a formal trick, and decided that yes, it is a real, meaningful phenomenon. We could parallel that now and ask: is the use of non-determinism just a formal trick for interface specification or can it really be used to improve user interfaces? The next section will seek to answer that question.

Meta-point: Having discussed some techniques for dealing with non determinism largely at the informal level, we have seen that non determinism can be a useful concept. We make use of this by shifting back to the concrete formal domain, examining the introduction of non deterministic features to improve interactive response.

4.7 Deliberate non-determinism

So far we have dealt with cases where non-determinism has unintentionally arisen in the interface, and we have been mainly interested in removing it and its problems. In the last section, we saw that when developing systems, non-determinism can actually be used to good effect. In this section, we will consider a display update strategy that is deliberately non-deterministic. We will call this strategy non-deterministic intermittent update It has considerable advantages over deterministic strategies from the point of view of efficiency, however can such a deliberate policy of non-determinism ever be acceptable?

In the first subsection we will consider a basic semi-formal framework in which we can consider update strategies. In the following sub-section, we will consider the expression in this framework of total and intermittent update strategies (see Chapter 4 of [Dix 1987b]). Then, in section 4.7.2 we extrapolate these strategies and define non-deterministic intermittent update. Finally we consider whether or not it is an acceptable strategy from the user's point of view, and conclude that by deliberately adding non-determinism to the interface we may actually reduce the perceived non-determinism.

4.7.1 Static and dynamic consistency

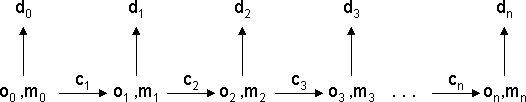

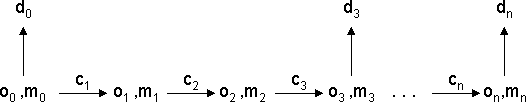

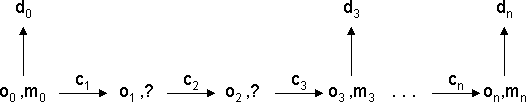

Many interactive systems can be considered in the following manner: there is an object, (obj), which is being manipulated, and an associated screen display, (disp). The way such a system is implemented is often as a state, <obj,map> consisting of the object and the additional information, (map), required to calculate the current display. For example if the object were a text then map may be the offset of the display frame in the text. As the user issues a sequence of commands (which may be keypresses, menu selections or whole line commands, depending on the system), the state changes in a well defined and deterministic manner. Thus as a sequence of commands are issued we get a sequence of objects o_i mapping states m_i and displays d_i.

The earlier discussion on specification would lead us to question; what are the requirements for this update sequence. Typically they fall into two categories:-

static consistency

at any stage we expect there to be a well defined relation between the object and the display. For instance in the case of text with a cursor position and a simple character map display with its cursor, we would expect the characters to match if we overlayed the two aligning the cursors.

dynamic consistency

properties that hold between successive of displays. Typical of this is the principle of display inertia that says successive displays should differ as little as possible.

The designer will (more or less) have an idea of which static and dynamic requirements are important for the particular system, however these will rarely specify the map completely and thus additional ad hoc requirements will be added to define it uniquely. (This is idealised, as often in practice these fundamental design decisions are made as the system is coded, with little reference to global impact). The additional requirements may themselves be either static or dynamic.

Bernard Sufrin's specification of a display editor [Sufrin 1982] deliberately leaves the specific update strategy only partially defined, instead he supplies a static consistency requirement and a dynamic "inertia" requirement that if the new cursor fits on the old display frame then the frame doesn't change. Many editors follow this rule of thumb and add additional rules to fully specify the case when the cursor does not fit on the old screen, such as "scroll just enough to fit in the cursor", "scroll a third of a screen in the relevant direction" or "centre the cursor in the new display". All these rules have additional special cases at the top or bottom of the text, and in the case of the first two, when the movement of the cursor is gross.

4.7.2 Intermittent update

As already noted in section 4.5.1 the time taken to compute the new map and update the display may lead to apparent non-determinism for the user, such as cursor-tracking. Clearly we want to avoid this non-determinism.

If, after all other optimisations have been tried, the response is still unacceptable, a possible course is to use intermittent update as described in the last chapter. This corresponds to surpressing some of the displays in the sequence:

This is mildly non-deterministic in that the sequence if displays is different depending on exactly how fast the user types. So we already we have a (common) example of deliberate use of non-determinism.

However, although this reduces traffic to and from the display device (critical on older low bandwidth channels), it still leaves the considerable expense of updating the map component. Is there any way we can reduce this overhead?

4.7.3 Non-deterministic intermittent update

When specifying the editor component of a simple hypertext system [Dix, Harrison and Miranda 1986] a slightly different approach to the standard display inertia was taken. As usual only basic static requirements were specified, and then to try a few additional requirements that could loosely be described as "cursor inertia". The first of these was strict cursor inertia, where the cursor position on the screen moved as little as possible, this is a dynamic requirement. This had some very strange consequences, in particular, as the cursor began at the top of the document and hence at the top of the screen, it always tried to stay at the top of the screen! A second variation on this was to always position the cursor as near the middle of the screen as possible. In terms of its observed behaviour this requirement has its own advantages and disadvantages, however the important thing about it is that it is a purely static requirement. This means that the display map can always be calculated from the current text alone, it is a purely declarative interface

In principle one would expect a declarative interface to be very predictable. However, few interfaces adopt this style. Harold Thimbleby's novel calculator [Thimbleby 1986] does so, but users are often surprised at its features, perhaps because they are unused to the declarative style. The big advantage in performance terms of a declarative interface is that when one only updates the display intermittently, one need only update the map intermittently also.

Can we do the same for a non-declarative interface?

It is usually the case, (and is so in the text editor example), that static consistency is most semantically important. Therefore we could imagine bunching a series of commands, updating the object and then re-establishing the display map based on static consistency, and modifying the dynamic requirements to apply to these consistent epochs.

Previously we would have demanded for each command, c_i, an object-map pair where each o_i is derived from the previous object via the command, where each <o_i,m_i> is consistent with respect to the static requirements, and where the successive pairs {<o_i-1,m_i-1>,<o_i,m_i>} satisfy the dynamic requirements. Now we only ask for an object for each command, a set of epochs e_j and maps at these epochs only, such that at each epoch <o_ej,m_ej> is consistent and each successive epoch pair <o_ej-1,m_ej-1>, <o_ej,m_ej> satisfies the dynamic requirements.

4.7.4 Is it a good idea?

What sort of effect would this have in practise? Imagine the text editor with display inertia. The cursor is on the second to last line of the screen, and we slowly enter "down, down, up", at the second "down" the screen would scroll to accommodate the new cursor position, then on the "up" it would stay (by display inertia) in this new position. If however we entered the commands quickly and they were bunched for processing, then after the three commands when the static and dynamic invariants are enforced, the new cursor position is within the original display frame and this is retained ... the result is non-deterministic!! Comparing this to intermittent update, we see that in that case only the intermediate states of the screen differed, in this case the final state differs depending on the exact timing of input.

I would argue that the non-determinism introduced is acceptable for two reasons. Firstly because it is only non-deterministic within the bounds of the static consistency. Secondly, the exact operation of the dynamic requirements are usually unpredictable anyway, and thus the apparent non-determinism will be no worse, and we may actually reduce it. This is especially true of the principle of display inertia. The reason why it is introduced is to ensure that the location of useful information changes as little as possible in order to aid visual navigation. If intermediate displays are not produced then the deterministic strategy leads to a changing display, whereas the non-deterministic strategy leads to a fixed one; clearly the latter application of the principle is more in line with its intention, and for the user is probably more predictable than its application to imaginary intermediate displays.

4.8 Discussion

We have seen how formal non-deterministic models are useful in describing interactive systems behaviour. We asked ourselves whether this had any real meaning. In section 4.4.3 we saw that the appropriate user centred definition of non-determinism was a behavioural one, and under this definition interfaces did display non-deterministic properties. Further we have seen many examples of how non-determinism arises in practice. In section 4.6 we found that users have many ways of dealing with non-determinism, and that the designer can design systems to aid them in this. Finally we have seen that it can in fact be beneficial to deliberately introduce non-determinism into the user interface, both to achieve other goals (in the example efficiency) but also to potentially reduce the non-determinism of the interface.

What have we gained by this analysis?

Firstly, by using the strong word non-determinism rather than weaker ones like unpredictable, we see rather more the urgency of the problems considered.

Secondly, we have found that many different well recognised problems can be considered as manifestations of non-determinism, this allows the possibility of cross-fertilisation between the domains.

Thirdly, by considering problems in this light, it enables us to see more clearly ways of expressing them. For instance, regarding problems of sharing as specifying acceptable levels of non-determinism. Thus we might describe a mail system, not in terms of multiple users and messages, but as a single user with a system displaying limited non-determinism.

Finally, it has given us a more pragmatic view of non-determinism and hence the ability to consider the idea of deliberately non-deterministic interfaces.

Moving up to the meta-level, it is precisely the way in which the formal recognition of non-determinism lead us to recognise it as a common problem that enabled us to approach it in this pragmatic manner. It is also the formal parallels between the different phenomena that higlighted the parallels at the informal levels. That is we see formal methods not as a brute force technique for the aesthetically inarticulate, but as a source of imagery for a thinking mind.

Meta-point: It is precisely the way in which the formal recognition of non determinism leads us to recognise it as a common problem that enabled us to approach it in this pragmatic manner. It is also the formal parallels between the different phenomena that highlighted the parallels at the informal levels. That is we see formal methods not as a brute force technique for the aesthetically inarticulate, but as a source of imagery for the thinking mind.

References

• G. Cockton (1990). Designing abstractions for communication control.Chapter 8 In Formal Methods in Human-Computer Interaction, Ed. M. H. a. H. Thimbleby. Cambridge University Press. pp. 231-271.
• A. J. Dix and C. Runciman (1985). Abstract models of interactive systems. People and Computers: Designing the Interface, Ed. P. J. &. S. Cook. Cambridge University Press. pp. 13-22.
  full paper (html)
• A. J. Dix and M. D. Harrison (1986). Principles and interaction models for window managers.People and Computers: Designing for usability, Ed. M. D. H. &. A. F. Monk. Cambridge University Press. pp. 352-366.
• A. J. Dix, M. D. Harrison and E. E. Miranda (1986). Using principles to design features of a small programming environment. In Software Engineering Environments, . Peter Peregrinus. pp. 135-150.
• A. J. Dix (1987). The myth of the infinitely fast machine. People and Computers III - Proceedings of HCI'87, Eds. D. Diaper and R. Winder. Cambridge University Press. pp. 215-228.
  full paper (html)
• A. J. Dix (1987b). Formal Methods and Interactive Systems: Principles and Practice.
  D.Phil. Thesis, YCST 88/08, Department of Computer Science, University of York.
  (see also my book Formal Methods for Interactive Systems)
• M. Harrison and A. Dix (1990). A state model of direct manipulation in interactive systems. Chapter 5 In Formal Methods in Human-Computer Interaction Eds. H. Thimbleby and M. Harrison. Cambridge University Press. 129-151.
• B. Sufrin (1982). Formal specification of a display-oriented text editor. Science of Computer Programming, . North Holland Publishing Co. pp. 157-202.
• H. Thimbleby (1980). Dialogue determination. International Journal of Man\(enMachine Studies, 13 pp. 295-304.
• H. Thimbleby (1986). The design of two innovative user interfaces. In People and Computers: Designing for usability, Ed. M. D. &. M. Harrison A. Cambridge University Press. pp. 336-351.
• H. Thimbleby (1986b). Ease of use ­ the ultimate deception. In People and Computers: Designing for usability, Proceedings of HCI'86, Eds. M. D. Harrison and A. Monk. Cambridge University Press. pp. 78-94.
